Serie di Lemo K
Created with Pixso. 100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment

Marchio: OEM
Numero di modello: FGG.1K.309
MOQ: 1
prezzo: Negoziabile
Condizioni di pagamento: Western Union, T/T, Paypal
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
CE.ROHS
Misurare:
0K,1K,2K,3K,4K,5K
Isolante:
PPS
No, le spine.:
2 pin-32 pin
Valutazione IP:
IP67-68
Genere:
Maschio e femmina
Resistenza (Shell):
5000 cicli di accoppiamento
Materiale di contatto:
Bronzo berillio e superficie placcata oro
Materiale abitativo:
Altri prodotti di acciaio
Tipo:
Push Pull Connector
Gruppo cavo:
Sì, supporta l'OEM
Imballaggi particolari:
pp PAG
Capacità di alimentazione:
10000 pezzi al mese
Descrizione del prodotto

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment



Features:



  • 1. Secure Push-pull Self-locking system.
  • 2. High density assembly to save space.
  • 3. Alignment Key and Polarized Keying System to avoid cross-interface.
  • 4. Colorful plug round nut and socket screw nut for choice, easy for identify.
  • 5. can be 100% compatible with original connector.
  • 6. 360 angle screening for full EMC shielding.
  • 7. Multipole types 2 to 32 contacts.​

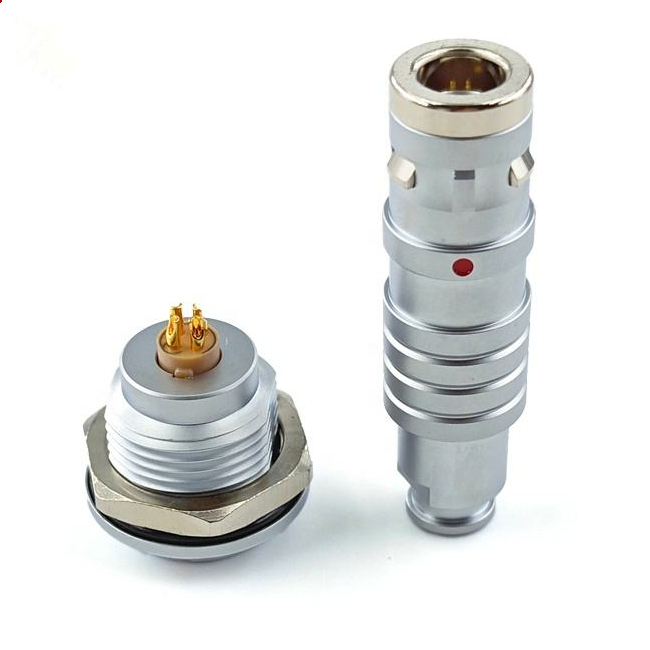

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment 0

Applications:



  • Industrial Control
  • Test and Measurement Equipment
  • Information Systems
  • Automotive and Military
  • Extreme Working Conditions
  • Harsh Environments
  • Audio & Video
  • Data Communication

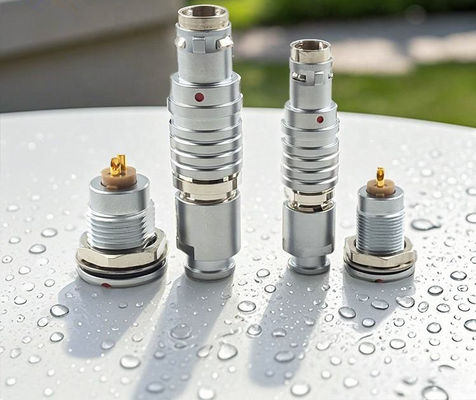

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment 1



Specifications:

Insert configuration: 2 to 32 pins
Shell size: #0, 1 or 2K,3K,4K
Contact type: solder, print or crimp
1 key: Alpha: 0°
2 keys: Alpha: 30, 45 or 60°
Protection grade: IP67 to 68
Contacts material: bronze beryllium and gold-plated surface
Housing material: nickel-plated brass
Collet: nickel-plated brass
Insulator material: PPS and PEEK



Size and Drawing:

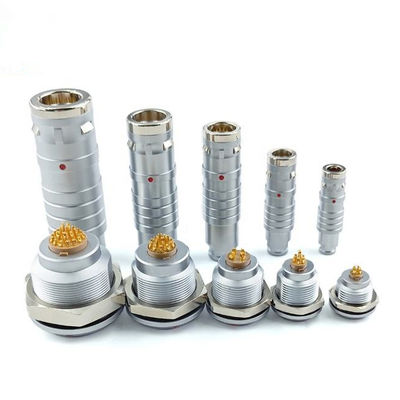

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment 2



Cable Assembly :





  1. Ebuddy has our own fully trained technicians to make it happen.
  2. Each cable assembly is fully tested for pin-pin continuity, as well as having a high voltage test to ensure that there are no potential breakdown problems.
  3. Every cable assembly is fully inspected to ensure that it meets the requirements specified, which is tested to ensure that there are no short circuit, no potential breakdown problems before shipping.
  4. If the cable you received is defective, please contact us. We will solve the problems properly or send you a new replacement at once.
  5. OEM Cable Assemblies support.

100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment 3



About us:



Ebuddy is a manufactuer that:

  • 1. Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
  • 2. Can be 100% compatible with original LEMO • FISCHER • ODU • HIROSES• BINDER •Military 38999.
  • 3. Series has Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.
  • 4. CO, Form A, Form E for customer clearance cerificates available for you.
  • 5. CE, ROHS, ISO:90001-2008, SGS Audited manufacturer.
  • 6. All the items can work normally after 5000 times mating.





100% Compatible Lemo Cable Connector K Series Waterproof IP68 Circular Connectors for Industrial Control and Test and Measurement Equipment 4
