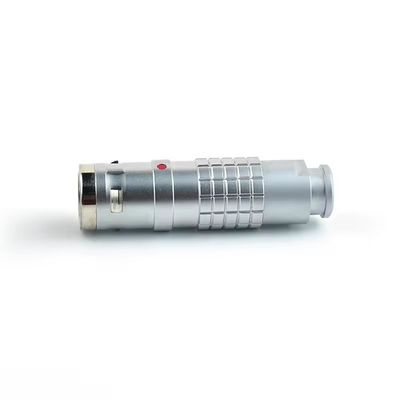

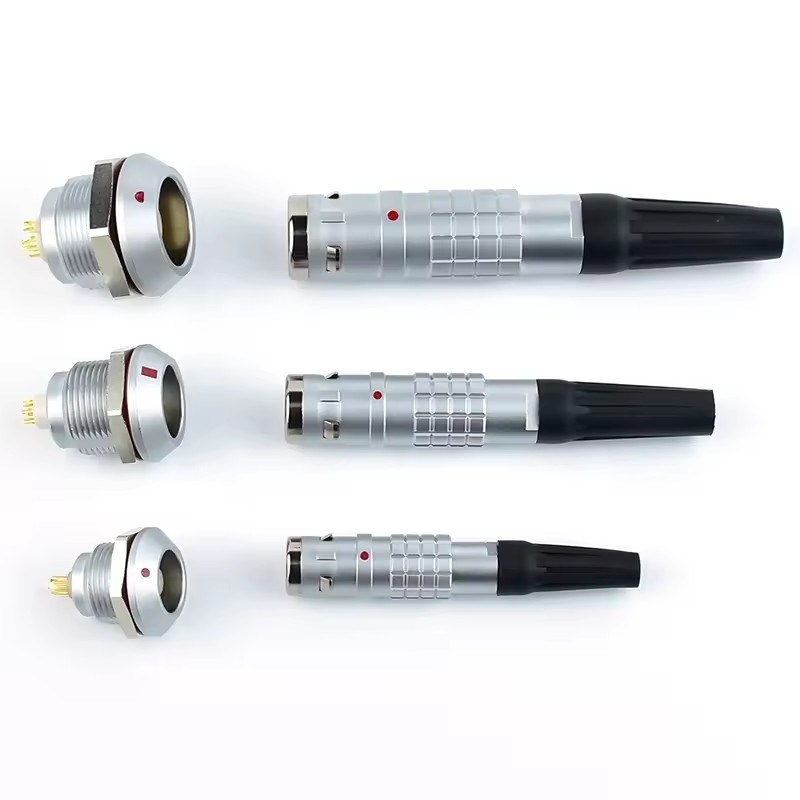

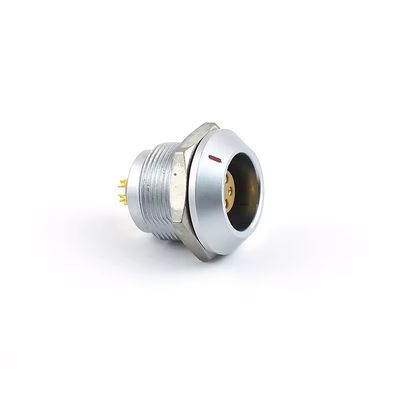

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Marchio:	OEM
Numero di modello:	FGG.0K.306
MOQ:	1
prezzo:	Negoziabile
Condizioni di pagamento:	Western Union, T/T, Paypal

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

CE.ROHS

Misurare:

0K 1K 2K 3K

Isolante:

No, le spine.:

Da 2 a 40 pin

Valutazione IP:

IP65 - IP68

Genere:

Maschio e femmina

Resistenza (Shell):

5000 cicli di accoppiamento

Applicazioni:

Audio e video

Intervallo di temperatura:

-55°C~+125°C

Umidità relativa:

fino al 95% a 60°C

Imballaggi particolari:

pp PAG

Capacità di alimentazione:

10000 pezzi al mese

Evidenziare:

Lemo K Series aviation connector

2 to 40 pins FGG plug

male female socket connector

Descrizione del prodotto

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Main Features

Mechanical life: >5000 times
Operating temperature: -45°C to +125°C
Waterproof grade: IP66 to IP68
Salt spray: 5% NaCl fog in 96h
Relative humidity: up to 95% at 60°C
Impact: 100g, 6ms
Vibration: 10-2000Hz, 15g
Air leakage: when 1.0-10'Pa pressure difference is applied at both ends of the socket, the leakage rate is not greater than 1.0Pa*cm/s
Water pressure: The plugged connector is immersed in 2m depth of water, after 24h, there is no water seepage at the connector interface, and after drying at room temperature for 30min, its insulation resistance should comply with the water pressure conditions stipulated in military standard 3.2.8

Specifications

Insert configuration	2 to 40 pins
Shell size	#0, 1 or 2K
Contact type	solder, print or crimp
1 key	Alpha: 0°
2 keys	Alpha: 30, 45 or 60°
Protection grade	IP66 to 68
Contacts material	bronze beryllium and gold-plated surface
Housing material	nickel-plated brass
Collet	nickel-plated brass
Insulator material	PPS and PEEK
Compatible with series	K/FGG/PHG/EGG and others including FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, K/S/F/SC series, ODU, Fischer, binder and redel connectors

Applications

Audio-video Aviation Communications Medical Military Test and Measurement Analysis Data Acquisition Data Transfer Equipment Module Power Sensor Sensor Systems Instrumentation

About Us

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly
100% compatible with original LEMO, FISCHER, ODU, HIROSES, BINDER, Military 38999
Series includes Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482
CO, Form A, Form E for customer clearance certificates available
CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
All items can work normally after 5000 times mating
